160X Heat Shrink Butt Terminals Waterproof Solder Sleeve Wire Connector 26-10AWG
Check the listing for details.
| Location | Guangzhou CN |
| Shipping | Free shipping (check listing for details) |
| Seller |
integrity02
99.7% positive · 332 feedback
|
| Listing | FixedPrice · Active |
| Start time | 2024-06-22T08:26:35.000Z |
| Type | Butt Connector |
| MPN | EB11076 |
| Brand | URLWALL |
| UPC | 887261269892 |
| Color | white,red,blue,yellow |
| Material | Polyolefin Tubing with Hot Melt Adhesive & Solder inside |
| Feature | Fully waterproof seal |
| AWG | 10-26AWG |

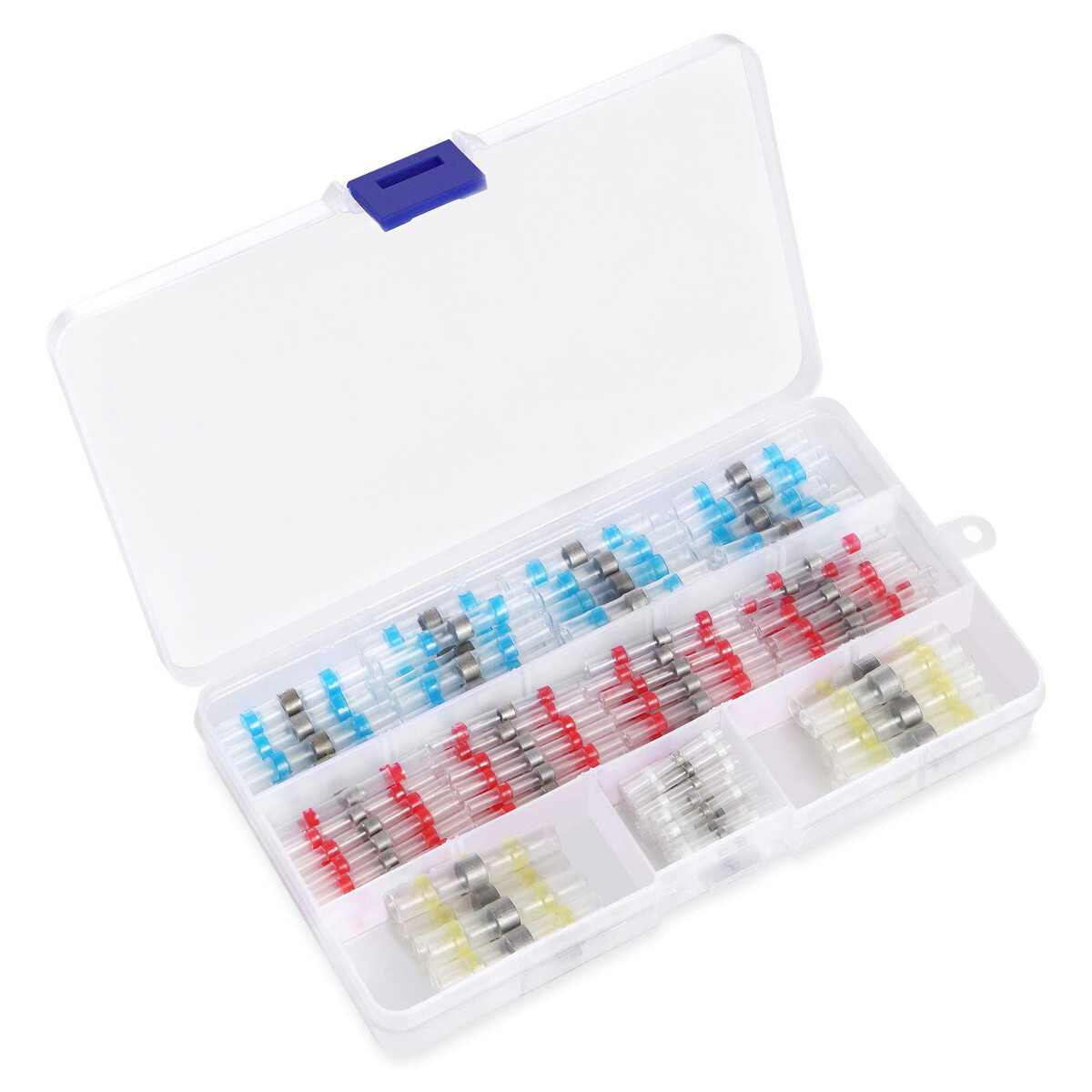

| Package Included | 1 box + 160 pcs wire connectors |
| Quantity: | 160Pcs |
| styles | Wire Solder Connectors |
| Heat Shrink Ratio | 3:1 |

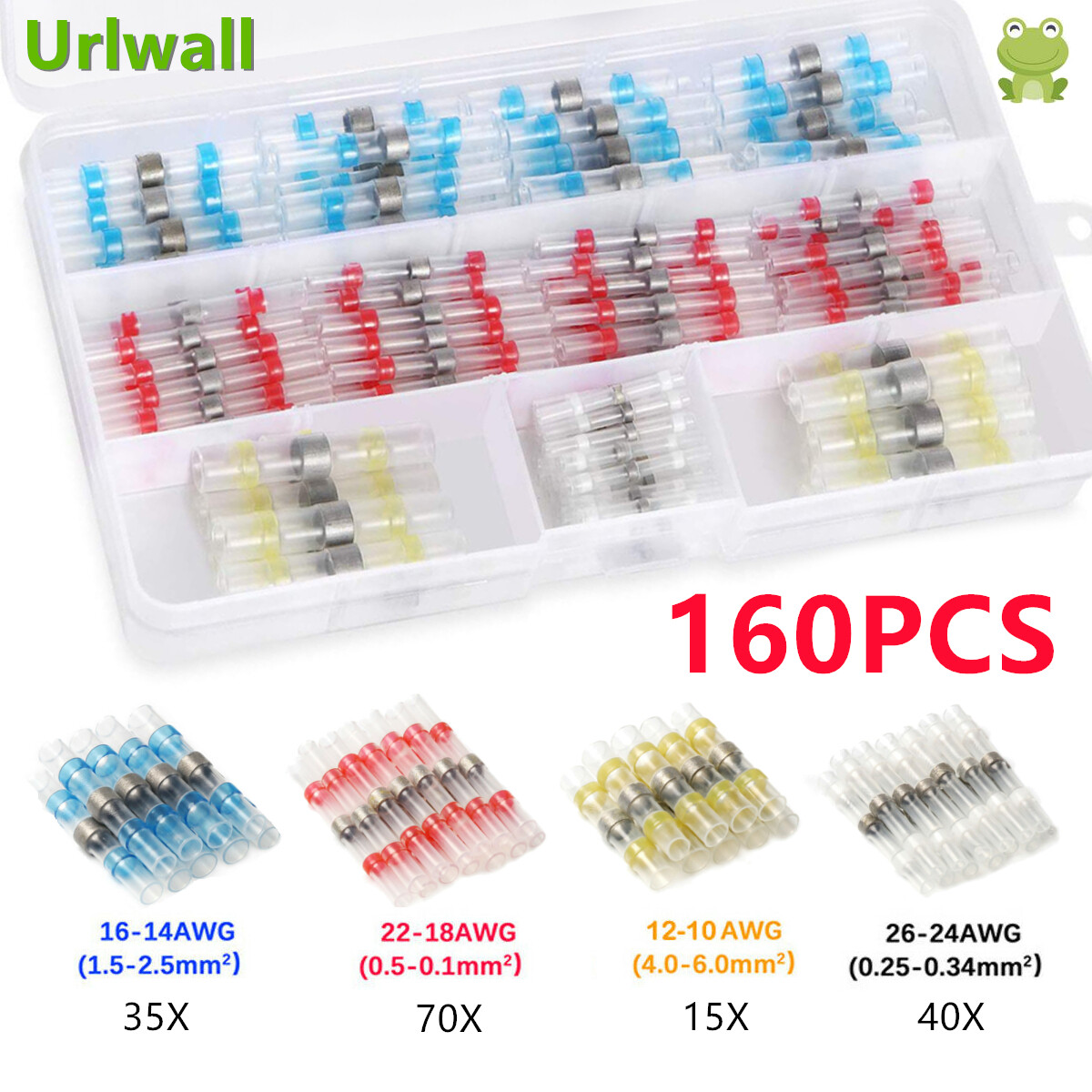

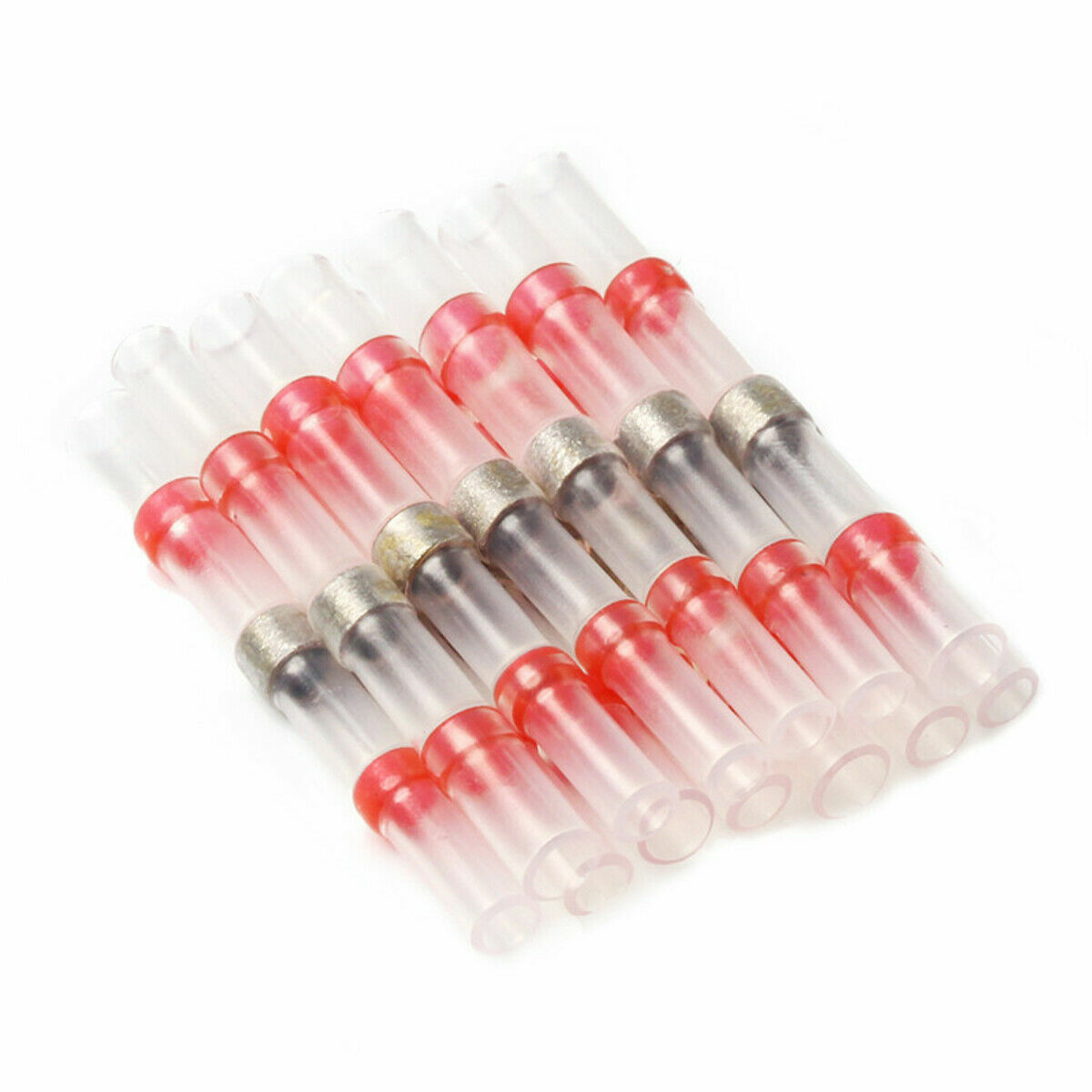

| Red Connectors | Dia 3.0 mm, 0.5-1.0mm2 22-18AWG |
| Blue Connectors | Dia 5.0mm, 1.5-2.5mm2 16-14AWG |
| Measurement System | Metric |
| Minimum Shrink Temperature | 80℃ |
| Minimum Temperature for Solder to Melt | 138℃ |
| Item Quantity | 160 |
| Waterproof Rated | IP67 |
| current max | 27A |
| Gauge | 10-22 AWG |
| Special Features | 1 Step Solder and Seal Process |
| Yellow Connectors | Dia 6.0 mm, 4.0-6.0mm2 12-10AWG |
| White Connectors | Dia 1.5 mm, 0.25-0.34mm2 26-24AWG |
